🔌 What a “Charging Strip / Adapter + Cable” for S20 5G Should Support
To charge the Samsung S20 5G optimally, the charging adapter “strip” should meet certain standards and specifications, so that you get fast, safe, and efficient charging.
Here are the key parameters and features:
| Feature | Recommended / Required Spec | Why it matters |
|---|---|---|
| Output / Power (Wattage) | At least 25W capability (or more with supported standards) | To match Samsung’s “Super Fast Charging” potential. A weaker charger will limit speed. |
| Supported Standards & Protocols | USB Power Delivery (PD) + PPS / or Samsung’s adaptive fast charging protocols | The S20 uses these to negotiate higher voltages safely. |
| Voltage & Current Ranges (Output) | For example: 5 V × 3 A, 9 V × 2.77 A, or higher via PPS ranges (3.3–11 V etc) | These combinations determine how much power the phone can draw without overstepping safe limits. |
| Cable Type & Quality | USB‑C to USB‑C cable supporting high current (e.g. 5A cable) | A low quality cable will bottleneck charging; the cable must support the voltage/current the adapter outputs. |
| Input Voltage Range | 100–240V AC, 50/60 Hz | For using the charger internationally / in Pakistan where voltages vary. |
| Safety Features | Over‑current protection, over‑voltage, over‑temperature, short circuit protection | To protect both the phone and the charging hardware. |
| Certifications | CE, RoHS, etc (if available) | Indicative of compliance with safety and quality standards. |
📦 Examples & Specs from Pakistani Market
Here are a few examples / listings of chargers (“charging strips”) compatible with S20 5G in Pakistan, along with their specs. Use these as benchmarks or references when shopping.
| Product | Specs / Features | Notes / Caveats |
|---|---|---|
| Official Samsung 45W Super Fast Charger + 5A USB‑C cable | Output: up to 45W using PD / PPS / Super Fast Charging 2.0 | The listing says support for S20, S21 etc. charger Mart |
| Samsung Wall Charger 25W (Super Fast Charging / PD 3.0 / PPS) | Input: 100‑240V; Output: multiple voltage modes (PDO / PPS) | Good match for S20 if you don’t have the 45W version. Mobile Geeks |
| PD 45W Type‑C Super Fast Charger (after‑market / third party) | Output modes like 5 V–20 V, PPS ranges; 45W capacity | Supports S20 among many Samsung devices. iBucket – Online Shopping in Pakistan |
| Original 25W Charger + USB‑C cable (Super Fast) | 25W “super fast” output, cable included | This is often what’s sold for S20 in many local accessory shops. Daraz |
These give you a baseline: anything you pick should ideally meet or exceed the 25W level, with proper PD / PPS support.
⚠ Common Issues, User Reports & Tips
-
Some users report that fast charging stops working or slows down, sometimes due to cable/charger issues or port damage. Reddit+1
-
One user mentioned their S20 only ever used the 9V × 2A profile and then dropped to slower speeds past ~55%. Reddit
-
Many problems are traced to quality / damaged cables or faulty USB‑C ports / connectors. Cleaning the port, replacing the cable, or using certified adapters often resolves it. Reddit+2Reddit+2
Tips:
-
Use the original / certified charger + cable whenever possible.
-
If replacing, match or exceed 25W output, and ensure the cable supports the same current (e.g. 5A cable).
-
Avoid cheap / unbranded adapters that don’t explicitly list PD / PPS support.
-
Keep the USB‑C port clean — dust or debris could block proper contact.
-
If the phone shows “super fast charging” but the battery doesn’t move, try switching cables or adapters to test which piece is faulty./

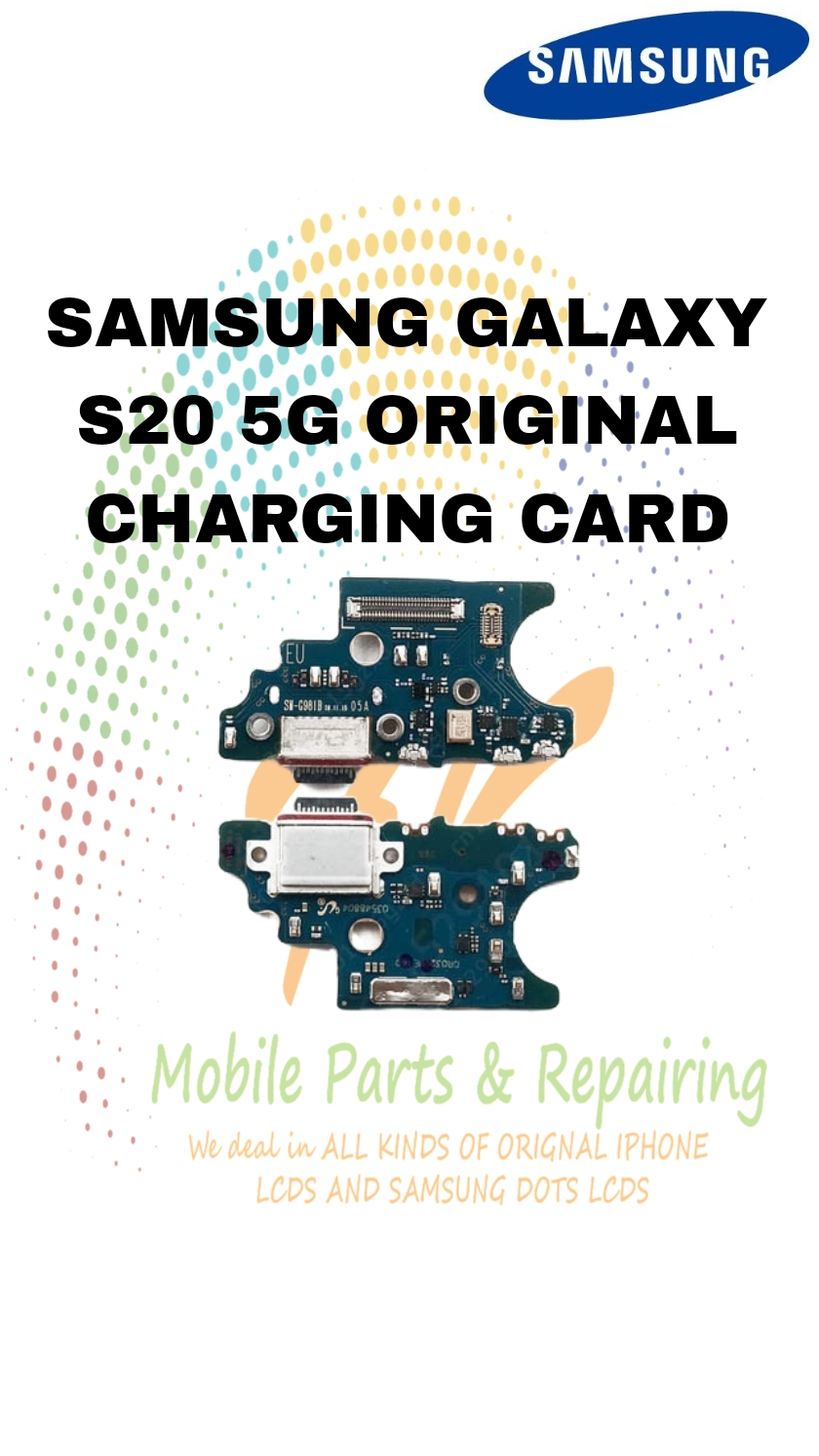

Be the first to review “S20 5G ORIGINAL CHARGING CARD”
