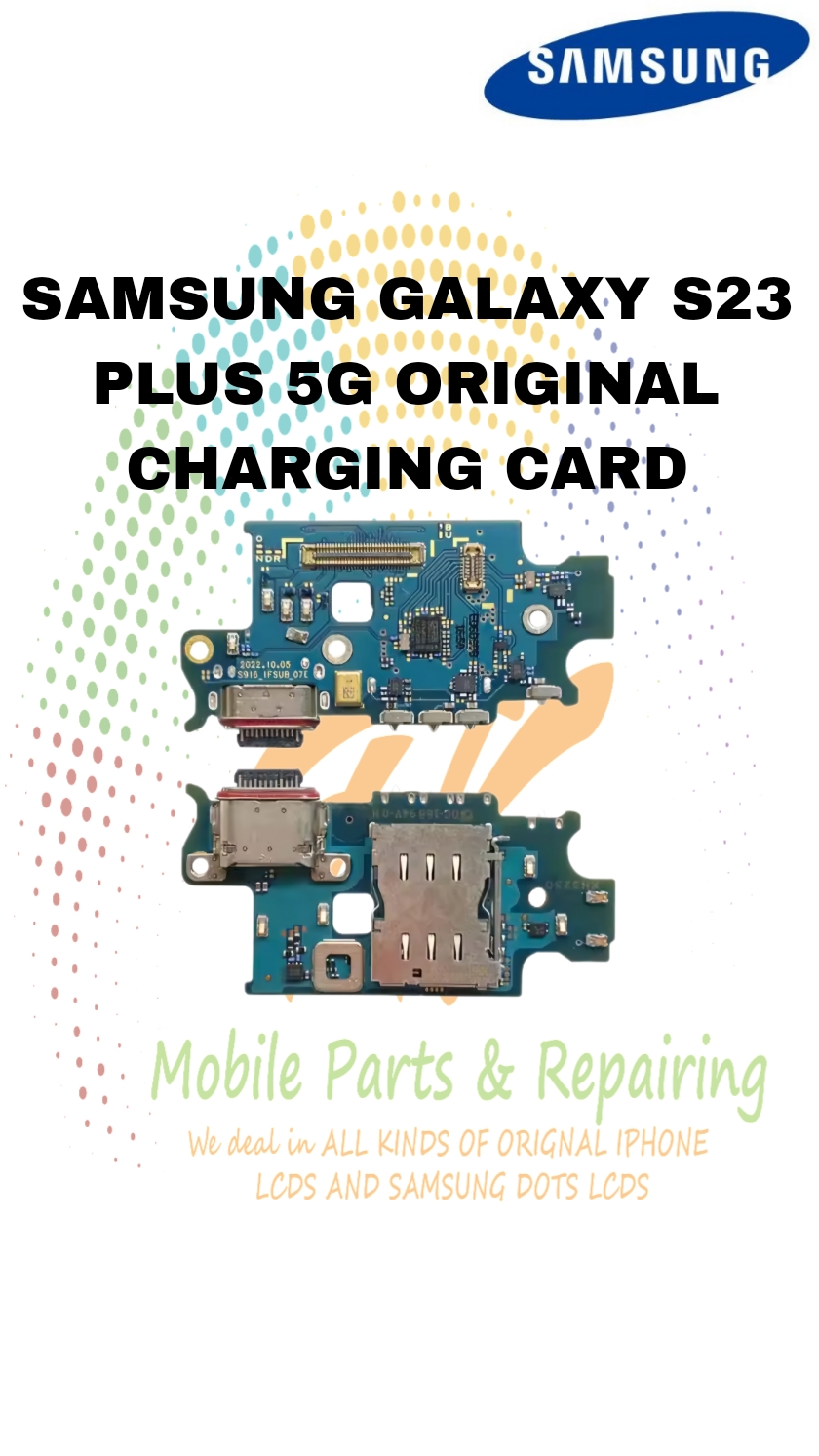

S23 PLUS 5G ORIGINAL CHARGING CARD

🔋 What is a Charging Card / Charging Board?

The charging card (or charging PCB board) in the Samsung S23 Plus is a small electronic component located at the bottom of the phone.
It is responsible for handling power input and related connections.

⚙️ Main Functions of the Charging Card

1. Charging Port Connection:
   It connects the USB Type-C port to the main motherboard and allows the phone to charge.

2. Data Transfer:
   It enables data transfer between the phone and a computer via a USB cable.

3. Microphone Support:
   The main microphone is usually located on this board and connected through it.

4. Antenna / Signal Connection:
   Some charging boards also include antenna connectors for better network or Wi-Fi signal.

5. Vibration Motor / Speaker Connection:
   It may also have connectors for the bottom loudspeaker or vibration motor.

⚠️ Reasons Why the Charging Card May Need Replacement

1. Charging Port Damage:
   Frequent plugging/unplugging or use of non-original cables can loosen or damage the USB-C port.

2. No Charging / Slow Charging:
   If the phone doesn’t charge properly even with a good cable and adapter, the charging IC or port on the board may be faulty.

3. No Data Transfer:
   When your PC doesn’t detect the phone via USB connection.

4. Microphone Issues:
   If callers can’t hear your voice and the main mic is on the charging board.

5. Liquid or Dust Damage:
   Moisture, corrosion, or debris inside the port can short-circuit or break the board.

💡 Summary
