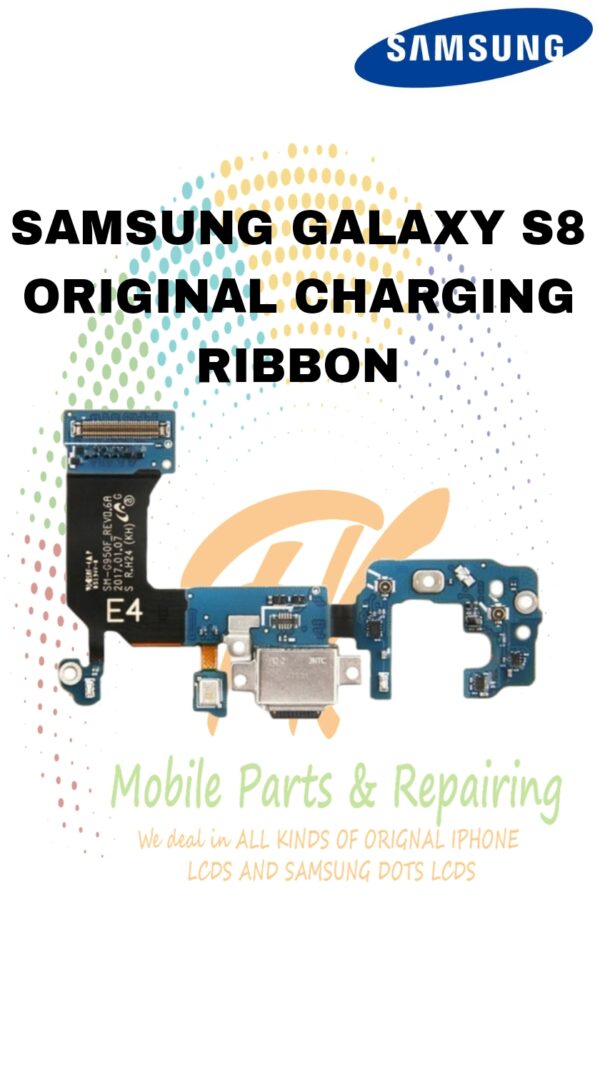

S8 ORIGINAL CHARGING RIBBON

🔌 What is the Charging Ribbon in Samsung S8?

The charging ribbon (also called the charging flex cable or charging port flex) is a flexible circuit that connects the charging port (USB Type-C) of the Samsung Galaxy S8 to the main motherboard. It plays a critical role in:

• Charging the phone

• Data transfer via USB

• Audio output (for USB-C earphones)

• Sometimes houses the microphone and antenna connections

⚙️ Main Components on the Charging Ribbon

1. USB Type-C Port

   • The port where you plug in the charger or USB cable.

2. Microphone

   • Some versions have the primary mic integrated.

3. Antenna Connectors

   • Connects to the phone’s antenna for signal transmission.

4. Screws & Mounting Brackets

   • Helps secure the flex in place inside the phone.

5. Flex Cable Connector

   • Connects to the mainboard (motherboard) of the phone.

🧰 Common Reasons to Replace It

• Charging not working

• USB port is physically damaged or loose

• Phone not recognized by computer

• Mic not working (if integrated)

• Water damage or corrosion
