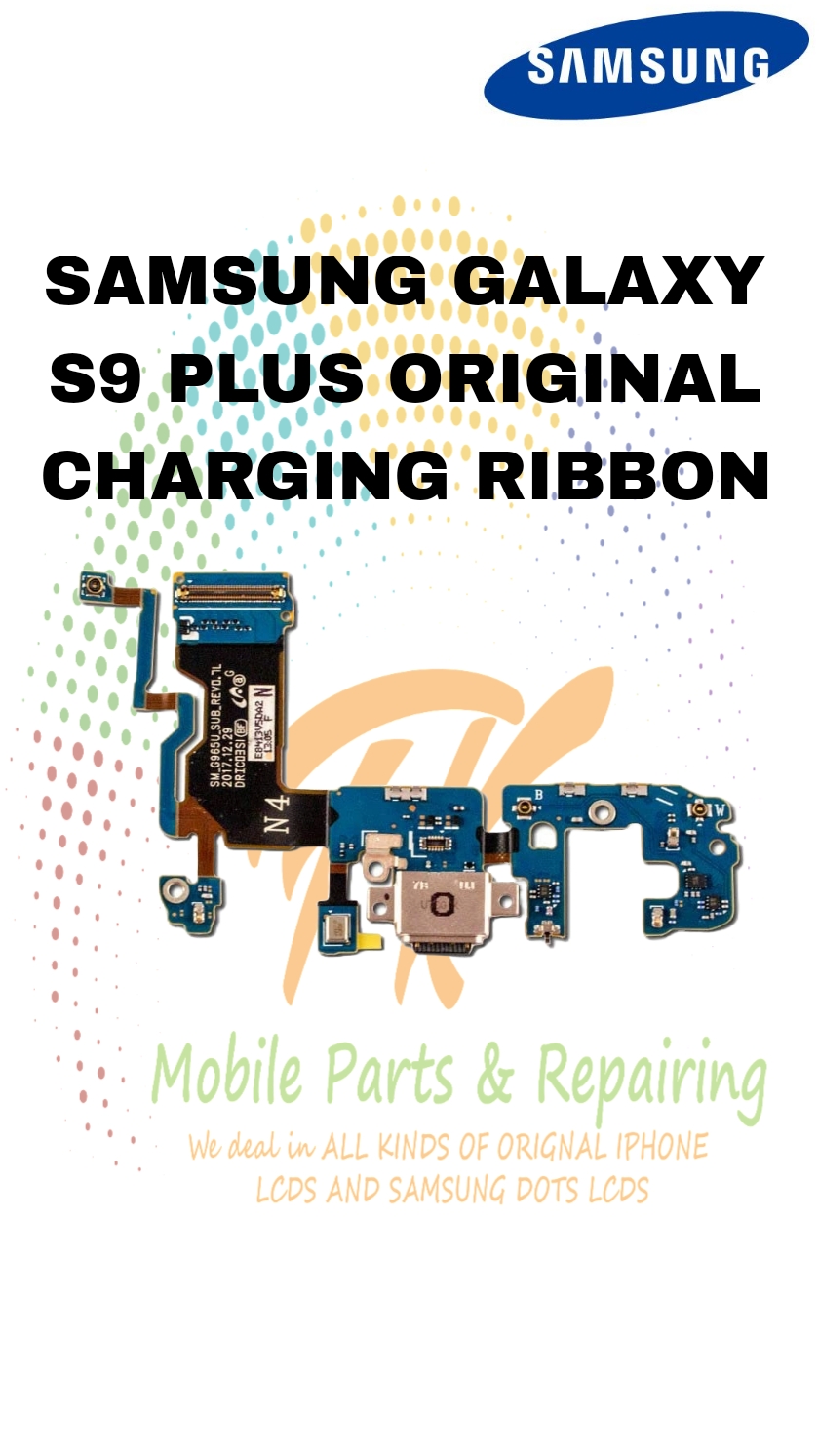

S9 PLUS ORIGINAL CHARGING RIBBON

The charging ribbon for the Samsung Galaxy S9 Plus (S9+) is a flex cable component that connects the charging port to the main logic board of the phone. It is also sometimes referred to as the charging port flex cable or charging dock connector flex.

🔧 Samsung Galaxy S9 Plus Charging Ribbon Description:

Name: Charging Port Flex Cable / Charging Ribbon
Compatible Model: Samsung Galaxy S9 Plus (SM-G965F, SM-G965U, etc.)
Position: Bottom of the phone (docked behind the charging port)
Function:

• Connects the USB-C charging port to the main board

• Handles charging, data transfer, and sometimes microphone and soft keys

• Also supports fast charging if supported by the original phone

📦 Typical Components Included:

Depending on the version (OEM vs aftermarket), the ribbon may include:

• USB-C Charging Port

• Microphone

• Soft Key LED connectors

• Antenna contact points

• Headphone jack port (on some versions, though S9+ has a separate headphone jack board)

🛠️ When to Replace:

• Phone not charging or slow charging

• USB-C port is loose or damaged

• Device not recognized by PC via USB

• Intermittent charging or disconnection

• No audio via USB-C headset

• Microphone not working (if part of the same flex)

⚠️ Important Notes:

• Always use OEM or high-quality replacement parts to ensure compatibility and safety

• Replacing this part involves opening the device and may void your warranty

• Professional repair is recommended unless you have experience with phone disassembly
